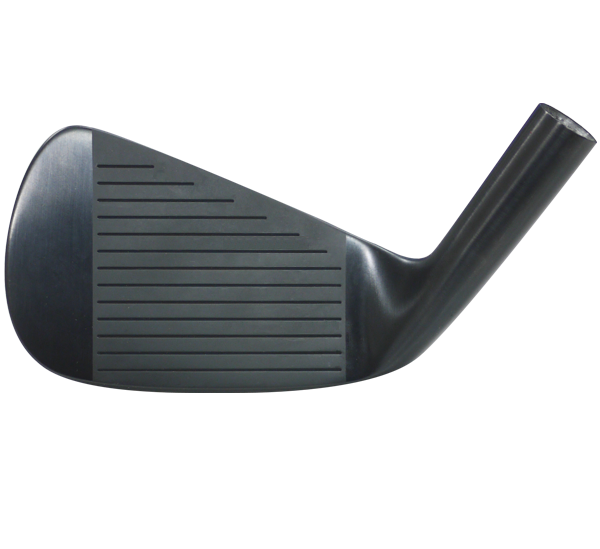

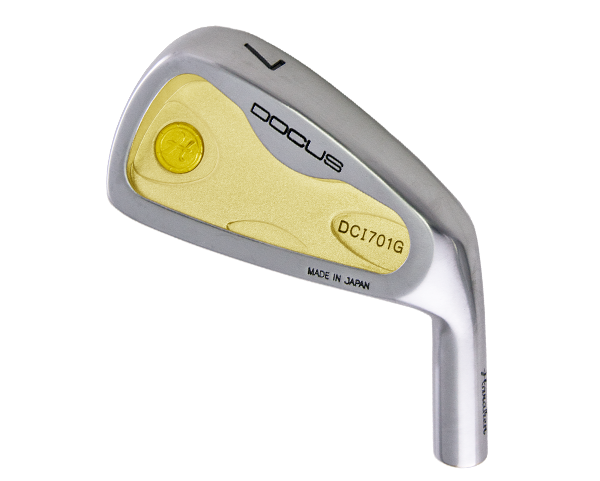

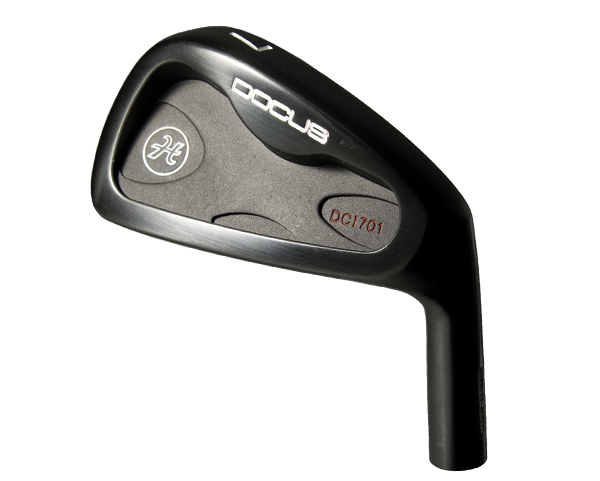

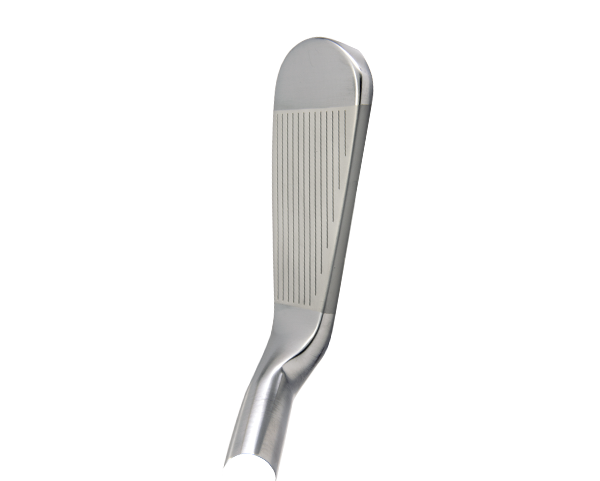

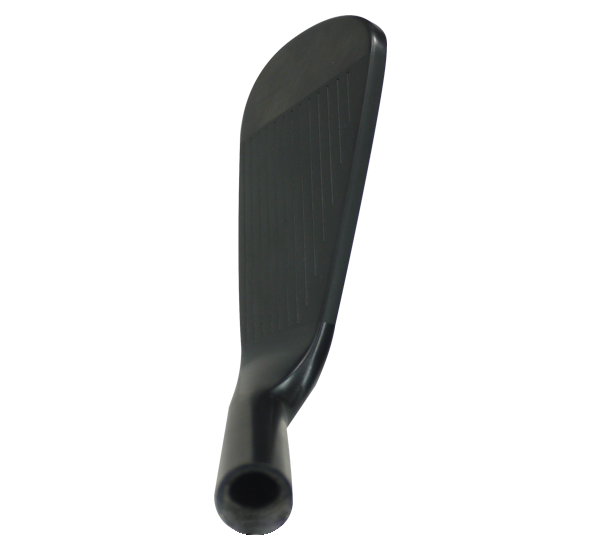

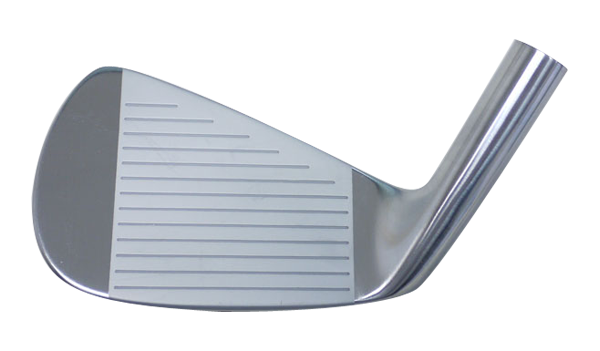

The combination of a wide sole, low CG, semi-offset and a slim profile provides blade like shot making capability with the forgiveness of a game improvement iron. The sole is strategically shaped for an improved turf interaction even with a wide sole. The SS400 stainless steel head provides a soft, mushy feel while maintaining the solidness at impact. The DCI701 is an all-round high performing iron for serious golfers. Now available in a limited edition 24K Gold and Non Plated Black finish.
Made in Japan Model.
- Process 1：Mold

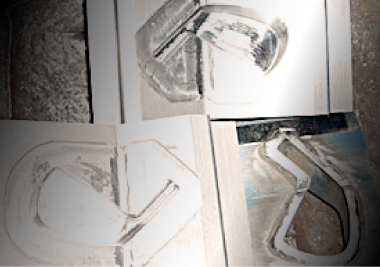

- Mold With accurate mold, it makes highly accurate irons.
- Process 2：Round Bar

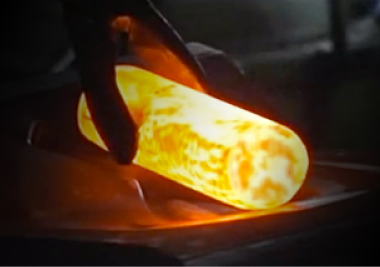

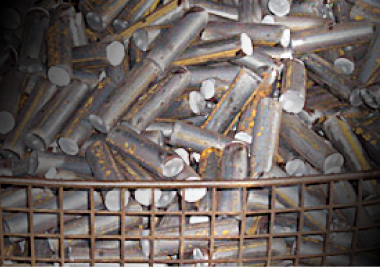

- Process2: Round bar Soft iron material is SS400 which is softer than usual. Round bar is heated until 1200℃.
- Process 3：Forging
- Forging Round bar is forged momentary by 1 ton pressure by air hammer. After rough punching, finish punching follows.
- Process 4：Finish

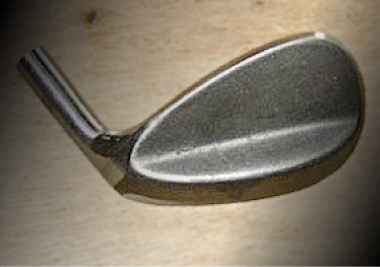

- Finish After finish punching, shot by small iron particle to remove scrap metal on a surface, and forging is ready by holing for hosel.
Engraving and Adjustment
- Process 1：Press

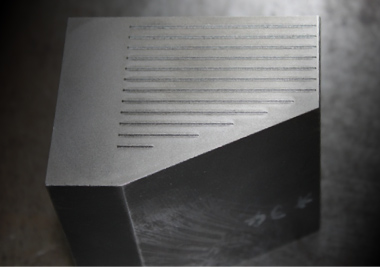

- Press After being engraved, press the score line by 200t pressing machine. Our companies’ are U-slot as suitability model
- Process 2：score line

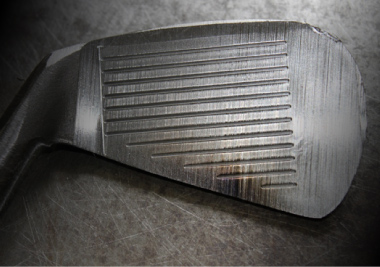

- Score line is finished.
- Process 3：Adjustment

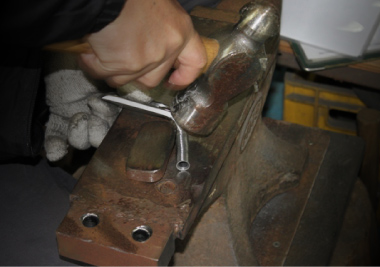

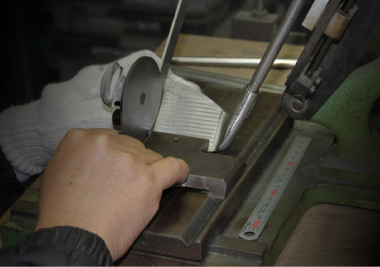

- Adjustment Loft adjustment Adjust being punched by a hummer every loft, lie angle and FP etc. which makes them accurate. Each one is no doubt handmade.
- Process 4：Measurement
- Measurement They measure lie angle by a special measuring instrument, loft angle by a protractor and FP by a ruler. That is the repetition of these works.
- Process 1

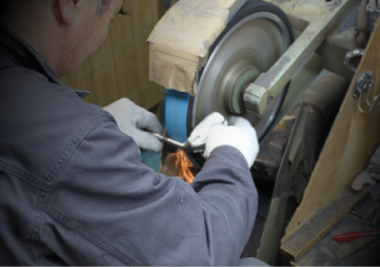

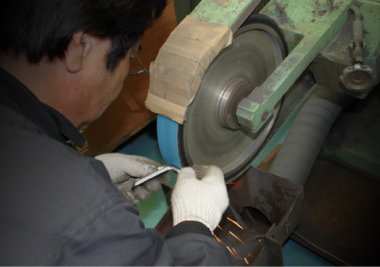

- Rough Polishing We rough polish in advance by #80 paper for a shape, a weight and a bounce etc.
- Process 2

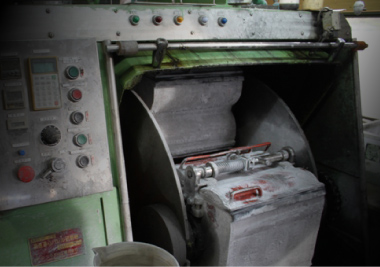

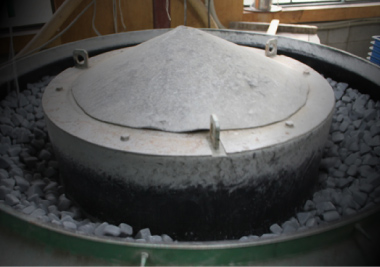

- Vibration barrel They are polished automatically in the barrel where there are polishing stones for 7 to 8 hours. Because of this, the coarse of #80 paper is removed and the corner becomes round uniformly.
- Process 3
- Finish-polishing They are polished by more fine-grained paper and cloth buff.
- Process 4
- Automatic Polisher After the finish-polishing, they put into a discrete automatic polisher where there are small polishing stones and polish automatically for 90 minutes.
- Process 5

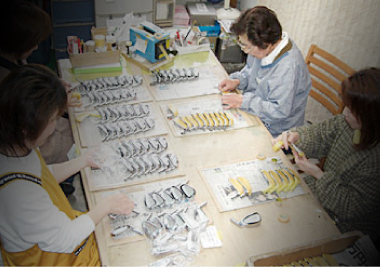

- Finishing After the centrifugal barrel, we inspect and plate. After the plating we inspect again, it follows the blasting on face, the coloring and the final upwash, then the product is ready.
limited company Fujimoto technician
|Head||Material||Mild steel carbon|
|Manufacturing process:||Forged / Chrome satin plating(Silver),
No Plating Gun Blue（Black）
|Dynamic Gold S200 Shaft||Flex||S200|
|N.S.PRO 950GH Shaft||Flex||R / S / X|
|DOCUS For Iron Shaft||Flex||R|
|Price||DCI701G||#5-PW(6 set)||Dynamic Gold S200 Shaft-mounted model||￥180,000|
|#5-PW(6 set)||N.S.PRO 950 GH Shaft-mounted model||￥180,000|
|#5-PW(6 set)||DOCUS For Iron Shaft-mounted model||￥228,000|
|#4||Dynamic Gold S200 Shaft-mounted model||￥30,000|
|#4||N.S.PRO 950 GH Shaft-mounted model||￥30,000|
|#4||DOCUS For Iron Shaft-mounted model||￥38,000|
|#5-PW(6 set)||Dynamic Gold S200 Shaft-mounted model||￥144,000|
|#5-PW(6 set)||N.S.PRO 950 GH Shaft-mounted model||￥144,000|
|#5-PW(6 set)||DOCUS For Iron Shaft-mounted model||￥192,000|
|#4||Dynamic Gold S200 Shaft-mounted model||￥24,000|
|#4||N.S.PRO 950 GH Shaft-mounted model||￥24,000|
|#4||DOCUS For Iron Shaft-mounted model||￥32,000|
